New Downtown High-rise Includes Green Roof

30 11 2009

The Pinnacle at Symphony Place, a 29-story office building in downtown Nashville, opened this month. The building includes 520,000sf of Class A office space. It is home to law offices of Bass Berry and Simms and the headquarters of Pinnacle Financial Partners. The building designed by the award winning architectural firm Pickard Chilton with Nashville architects EOA Architects is anticipated to receive LEED-Silver certification from the United States Green Building Council (USGBC). With the inclusion of a 28,000sf rooftop garden, the building contributes significantly to Nashville’s ever growing green infrastructure

The green roof, designed by our office, is located on the 7th floor above the parking garage and includes a series of spaces that can be enjoyed by the building’s tenants. The area is comprised of 9,400sf of pedestal pavers and 19,000sf of vegetated areas. One hundred percent (100%) of the pavers were selected to exceed the minimum solar reflectance standards established by the LEED rating system. The striping pattern continues the prominent vertical fins on the facade of the building into the rooftop garden area. The planting areas are a combination of extensive green roof (planting media depths ranging between 5-9”) and semi-intensive areas (planting media depths ranging between 18”-30”). The semi-intensive areas were planted to reflect a more traditional landscape around each of the gathering areas and provide areas for trees to shade and scale the spaces. In an effort to establish a more pedestrian scaled environment and additional interest a series of 12ft pyramidal trellis structures were incorporated in the extensive green roof areas.

It is estimated that the green roof can retain nearly 67% of the annual rainfall falling directly on it. In addition, it reduces the peak flows, is significantly cooler than neighboring conventional roofs, reduces thermal heat gains in the water that enters the stormwater system, and provides a beautiful space to look upon and enjoy.

We are honored to have been a part of such an exciting project and look forward to watching it grow. We have been pleasantly surprised by the significant growth the plant material has shown in a short time period. As it matures, we will keep you up to date on its progress.

-Brian Phelps


Comments : Comments Off on New Downtown High-rise Includes Green Roof
Tags: , , ,
Categories : Green roof, Hawkins Partners, LEED, Sustainable Site Strategies

Portland’s Green Streets

25 11 2009

Streetsblog San Francisco had a great post last week that reported on a recent tour of Portland’s Green Streets taken during the Congress for the New Urbanism’s Project for Transportation Reform Conference. The post includes a number of wonderful green street examples. The quality of the installations are impressive. A representative of Portland’s Bureau of Environmental Services (BES) was quoted as saying the green streets were necessitated as a result of the City’s need to comply with a Clean Water Act lawsuit. The cost of conventional stormwater infrastructure topped nearly $150 million. This cost encouraged the city to explore alternatives like green streets for reducing water volumes. David Elkin,the BES representative quoted in the post, estimates the solution saved the City $60 million dollars in stormwater pipe replacement. The post is worth checking out.

-Brian Phelps


Comments : Comments Off on Portland’s Green Streets
Tags: , ,
Categories : Green Street, Streetscape, Sustainable Site Strategies

Opportunity Delayed?

23 11 2009

Over the past decade, cities have utilized a variety of methods to encourage and/or require sustainable building practices within their jurisdictions. All across the country green building incentives were enacted. According to a recent AIA Survey, 138 cities have some form of green building programs. Methods that rely on density bonuses or tax increment financing to reward/incentivize developers were predicated on growth. Unfortunately, the building boom over the last three to five years has fizzled (for the time being at least). It is no secret the development landscape has changed. Obviously, fewer projects being built equals less opportunities to incorporate green infrastructure within our landscapes. This really isn’t a problem if a project was being built in a greenfield. In fact, on a number levels especially in regards to stormwater management and water quality, it is preferable. But for the greyfields and brownfield sites that comprise much of our urban landscape, it is opportunity delayed. The opportunity being to convert these sites to better use and mitigate their negative impact. The old parking lots and retail centers continue to absorb and radiate heat while directing polluted stormwater into overburdened infrastructure and streams. This is particularly acute in areas that were built prior to modern stormwater standards.

So what are cities doing to encourage the incorporation of green infrastructure under these new market realities?

Stormwater Fees. Realizing that general funds can no longer meet the demands imposed on cities by the Federal Government and State Agencies, many cities have or are relying heavily on stormwater fees. Typically these fees are applied to everyone’s property based on impervious surfaces. It is common under these programs for property owners to receive discounts through the use of various stormwater management strategies. These often include green infrastructure related tools (i.e. green roofs, bioretention areas, pervious pavements). Depending on the significance of the fees, this can be a deciding factor for property owners to retrofit their properties. However, in most cases they are not high enough to warrant major investments.

Dedicated Funding. The City of Portland has taken a page from the art world and have enacted a “One Percent for Green” program that works similar to the more common “Percent for Art” programs. It is funded by allocating one percent of the city’s construction budget for the purpose of building green streets both on public and private property as long as it treats public stormwater. It also includes any new and retrofit projects that wouldn’t trigger the Stormwater Management Manual.

Economy of Scale. The unique double functioning nature and triple bottom line benefits of green infrastructure has prompted cities to combine stormwater management with other projects such as parks, streetscapes, road improvements, and other capital projects. The economy of scale allows them to stretch their dollars further to meet the needs of the city.

Direct Reimbursement. As mentioned in an earlier post about Chicago’s green roof program, cities are offering direct reimbursement of installing green infrastructure. This has manifested itself mainly for constructing green roofs. These reimbursements typically run around $5 per sf. Depending on the situation this can reduce the square foot cost for a green roof by as much as 30%.

Clean Water State Revolving Fund (CWSRF). CWSR Funds are another useful tool offered by each individual state that municipalities are utilizing to fund green infrastructure projects. Funding is provided by a combination of EPA grants and State matching funds. The basic premise is the fund provides low interest loans to municipalities for wastewater treatment, stormwater management, nonpoint source abatement and estuary protection projects. The payments toward the loan are reincorporated back into the fund where they can be loaned again. This method is increasingly becoming popular as a means of implementing green infrastructure projects across the country. The 2009 Stimulus Plan (American Recovery and Reinvestment Act, ARRA) gave a considerable boost to these programs. It includes $4 billion for Clean Water State Revolving Fund projects and $2 billion for Drinking Water State Revolving Fund projects.

Together programs like these have enabled municipalities to continue investment in their stormwater infrastructure. As cities grapple with the current market conditions, we should expect to see new creative funding ideas and a continued commitment toward increasing the use of green infrastructure throughout our cities.

-Brian Phelps


Comments : Comments Off on Opportunity Delayed?
Tags:
Categories : Sustainable Site Strategies, Uncategorized

Hill Center Green Hills receives Middle Tennessee ASLA Honor Award

20 11 2009

Streetscape

Underground Rainwater Harvesting Tanks

No Curbs with Filter Strips

The Middle Tennessee Chapter of the American Society of Landscape Architecture recently presented Hawkins Partners, Inc. a 2009 Honor Award in the environmental/urban design category for its work on the Hill Center in Green Hills.

Hollie Cummings, executive director of ASLA Tennessee Chapter, was quoted in an article in the Tennessean (Hill Center wins architecture award for urban design) saying, “The jury appreciated the use of details that served to unify the development and resulted in a cohesive design solution.”

HPI was involved in the planning, design, and construction of this infill redevelopment project located in Green Hills. The 220,000 s.f. mixed-use development consists of retail, restaurant, and office space. Site design elements include a pedestrian activated streetscape, which consists of wide sidewalks for shoppers, places for people to sit and relax or visit with friends, and outdoor dining along a tree-lined boulevard.

Sustainability played a big role in the design process. HPI collaborated with the design team to provide 100% improvement in the stormwater treatment over the previous site conditions. The site captures rainwater in a 25,000 gallon underground tank for use in irrigating the landscape (comprised primarily of native plants), and also utilizes new bioretention areas, which slow and reduce runoff – ultimately helping lower the temperature of runoff into the nearby Sugartree Creek. Some other items include a white roof on the Whole Foods store, over 60% of the parking is provided by covered structures and all the site lighting utilizes cut-off luminaires to reduce light pollution.

This project also won the Excellence in Development Award presented by Urban Land Institute (ULI).

– Kelly Copeland


Comments : Comments Off on Hill Center Green Hills receives Middle Tennessee ASLA Honor Award
Tags: ,
Categories : Sustainable Site Strategies, Uncategorized, Urban Planning & Design, Water Harvesting

Triple Bottom Line of Green Infrastructure

18 11 2009

Before and After of Green Infrastructure Improvements
(Source:“Green Cities Clean Waters” Plan)

In an earlier post titled “Making Green Infrastructure Common Place” we discussed the recent release of Philadelphia’s $1.6 billion dollar “Green Cities Clean Waters” Plan. Its thrust is to transform over 4,000 acres of impervious areas within the City’s Combined Sewer System to green space over the next 20 years through the use of green infrastructure strategies. This would involve converting over 34% of all existing impervious areas. Of this, the conversion will primarily be made on public property and right-of-ways. Green streets, the most widely used management tool, will comprise nearly 38% of these improvements (see graphic). The report claims this is “the largest green stormwater infrastructure program ever envisioned in this country”. While green infrastructure has been utilized and proven in many parts of the country, the sheer magnitude and commitment of the city is a radical departure from the conventional approach to stormwater management practices.

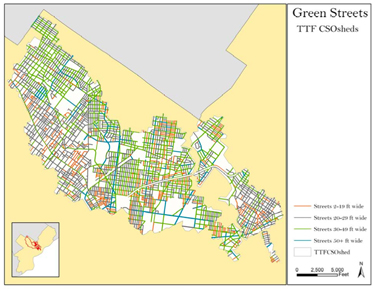

Map of Green Street Locations
(Source:“Green Cities Clean Waters” Plan)

So why did Philadelphia decide to rely so heavily on green infrastructure as a means of reducing overflows in their CSO system? Quite simply it was cheaper, significantly cheaper. The plan estimates over the next 20 years the plan is to be implemented, the “triple bottom line” benefits (social, environments, economic) of the plan alone will add up to a present value of $2.2 billion dollars. The following is a breakdown of the benefits that comprise this figure.

  • Heat Stress Mortality Reduction (35%)
  • Recreation (22%)
  • Property Value Added (18%)
  • Water Quality and Habitat (14.5%)
  • Air Quality (4.6%)
  • Avoided Social Costs from Green Jobs (3.7%)
  • Energy Savings (1.0%)
  • Carbon Footprint Reduction (0.6%)
  • Reduction in Construction- Related Disruptions (0.2%)

So instead of employing conventional underground infrastructure that is one-dimensional, and is estimated to cost $16 billion, the city has decided that implementing a multi-dimensional strategy with multiple benefits made more sense. But not only is it more desirable, it is politically easier to implement because it makes the city a more beautiful and healthy place. So if you are going to have to spend the money anyway, why not make it count.

The shortcomings of the conventional “tanks and tunnels” approach were not only that it exceeded the EPA’s affordability standard for stormwater management (2% of median household income), but it also did not address water quality issues and could require green infrastructure tools anyway to meet these requirements. In addition, the report points out that the conventional solution isn’t aligned with the EPA’s broader goals of sustainability, reduces streams baseflow thereby damaging the resources that is designed to protect, and doesn’t offer any secondary triple bottom line benefits. Furthermore, since the conventional solution is not delivered incrementally it is not flexible and does not offer any benefits immediately.

Green infrastructure on the other hand offered the city the opportunity to revitalize and restore the city’s streams and rivers, enhance the quality of the built environment throughout the city, improve air quality, reduce the heat island effect, and sequester carbon. While accumulating these benefits, the approach was more flexible, offered immediate benefits, and, most importantly, the cost of implementation was offset by the dollar value of the benefits. (see Volume 2: Triple Bottom Line Analysis of the plan for specifics)

While conventional infrastructure has its place, the combination of the two can play a significant role in addressing many of the issues facing our cities. It is critical that we continue to move toward making these strategies common place. By doing so we can make our cities healthier and more beautiful for all of us to enjoy, while at the same time responsibly managing our stormwater.

-Brian Phelps


Comments : Comments Off on Triple Bottom Line of Green Infrastructure
Tags: , , , , ,
Categories : Bioretention, Green roof, Green Street, Pervious Pavement, Sustainable Site Strategies

The Sustainable by Design Challenge

16 11 2009

A recent article by Ajay Garde has been published in the October 2009 issue of the Journal of the American Planning Association). The article describes a study and analysis of projects that applied for 2007 LEED-ND pilot program certification. LEED-ND is a rating system written collaboratively by the U.S. Green Building Council (USGBC), the Congress for the New Urbanism (CNU), and the Natural Resources Defense Council (NRDC) to promote sustainable development patterns and practices. The following is an excerpt from a JAPA press release:

According to author Ajay Garde, the LEED-ND committee has taken “the technical credentials of LEED and the criteria of New Urbanism for neighborhood design and created LEED-ND.” This approach may undermine the use of green criteria, as developers may focus on New Urbanist criteria instead. These drawbacks mean that LEED-ND is suitable as a supplement to, but not as a replacement for, local planning for sustainability that considers projects on a case-by-case basis within the local context.

My interpretation of Mr. Garde’s article is that LEED-ND is a great start, but it may not be the only answer to ensuring the absolute best development practices. Likewise, typical Best Management Practices (BMPs) for stormwater quality alone within a sprawl setting do not necessarily equal the best solution for a sustainable future…but they too are a good start.

One of the conclusions in the study suggests that LEED-ND certification is weighted more heavily for projects based on their location, layout and density with less emphasis on green infrastructure and technology. Mr. Garde suggests “that more points should be awarded for criteria such as solar orientation, onsite renewable energy sources, and other criteria from the green construction and technology category that contribute to energy and water efficiency.” I agree. Couldn’t we have well designed projects in appropriate locations that incorporate green infrastructure and technology?

Often in the real estate business, developers will look for the proverbial low-hanging fruit. If a developer can attain LEED-ND certification by Smart Location & Linkage and Neighborhood Pattern & Design with minimal emphasis on Green Infrastructure & Building, it’s probably safe to assume many will choose that route. Development costs vs. value and profit (short term vs. long term) are considered. Government regulations and entitlements are also a part of the equation.

LEED-ND is a voluntary and market-driven rating system. If a developer has a choice of developing in an urban area with more regulations but the incentive (faster approval times, increased density, etc.) of attaining LEED-ND certification or higher vs. developing in a suburban area with less regulation, which will they choose? This will continue to play out as the economy recovers.

How do government officials and agencies, planners and non-profits create either market-driven incentives, government regulations or a combination of both to ensure future development is as sustainable as possible in terms of social aspects, economics, and the balance between natural and man-made environments?

These are the questions and this is the challenge moving forward, but it’s comforting to know that progress is being made every day.

-Brian Hudson


Comments : Comments Off on The Sustainable by Design Challenge
Tags: , , , ,
Categories : LEED, Sustainable Site Strategies, Urban Planning & Design

Chicago Green Roofs: Seven Million Square Feet and Growing

13 11 2009

green_roof_sedum

I got the chance to spend a little bit of time last week with Chicago’s firecracker Commissioner of Environment, Suzanne Malec-McKenna while she was in Nashville for the Nashville Civic Design Centers annual Plan of Nashville event. Suzanne has been in the middle of an astonishing number of Chicago’s environmental bright spots, including the ambitious Chicago Climate Action Plan released in 2008, Chicago Trees Initiative and the very cool Chicago Offset Fund. But what has impressed me the most (and has for a long time) is Chicago’s tremendous growth in green roofs.

It all started in 2001 with the now well-known Chicago City Hall roof weighing in at a modest 20,000 s.f. In June 2008, a short seven years later, Chicago boasted 4,000,000 s.f. of green roof and today, they report that they have hit 7 million s.f. and they are still going. I wanted to find out more about how such an explosion occurs and one of the pieces and parts is related to the success of the green roofs is a Green Roof Grant Program begun in 2005 which has been continued and expanded. An interesting side note is that the popularity and volume of the green roofs across Chicago has also reduced the average installation price of extensive green roof in Chicago has dropped from $25/s.f. to $15/s.f.

As if the incentives of grant incentives aren’t enough, I also noticed that in August 2009, the Illinois Energy Plan provides ARRA funds toward cost-effective energy projects, including green roofs, which meet certain criteria. Illinois has recognized that green roofs provide economic development, carbon capture and energy and maintenance cost savings.

As I looked around at other cities, I found a few more that were engaged in similar incentive programs introduced within the last year: Portland, New York City and Washington DC (List of green roof incentive programs) . Through tax abatement or grants, each of these cities provide an incentive of about $5.00 per square foot through a green roof review process. Portland expects their Grey to Green Program to their current nine acres of green roofs on about 90 buildings to increase over the next five years by another 43 acres. Portland is committing $300,000 in grants in its first fiscal year of the program and is committed to keeping the program going for at least the next five years.

In our neighbor to the north, Toronto started the green roof incentives in 2006 starting with a $10 per square meter subsidy, then raised the subsidy amount to $50 per square meter in order to be more effective. Reports are that funding of $2.4 million dollars for green roof subsidies have been approved for the first five years of the program.

So hats off, Chicago! You are serving as a great example for the rest of North America – in fact, Chicago topped the Green Roofs for Healthy Cities list of top ten cities for both the United States and North America for the past five years.

-Kim Hawkins


Comments : Comments Off on Chicago Green Roofs: Seven Million Square Feet and Growing
Tags: , , ,
Categories : Uncategorized

EPA to test porous pavement and raingarden benefits

11 11 2009

1700 Charlotte
1700 Charlotte in Nashville
Combines Porous Concrete & Bioswales

Traditional asphalt parking lots may seem to be the most cost efficient, but underlying costs such as increased pollution and water load on our sewer systems need to be considered as well. In an attempt to measure those underlying costs the EPA has replaced nearly 43,000 SF of their traditional asphalt parking with 3 different types of permeable pavement systems and several raingardens with different planted vegetation. At their Edison, NJ facility they will conduct a decade long study to evaluate and document the performances of these permeable systems on the basis of removing pollutants and filtering capabilities. Having these systems all in the same location will likely result in more balanced testing of each material.

This study comes at an ideal time as many cities are beginning to re-evaluate old paving methods in order to reduce the load on existing sewer systems or just to reduce the amount of toxin runoff from paved surfaces to our nearby rivers and lakes. Traditional asphalt parking lots collect oil, grease and other debris over time, after a heavy rain or snowstorm these toxins are washed from the parking surface to the nearest storm drain or permeable surface. Replacing this impervious surface with a permeable pavement or raingarden will allow plants and soils to naturally filter the pollutants, while re-charging the ground water table.

Porous for Blog
Porous Concrete

-Will Marth


Comments : Comments Off on EPA to test porous pavement and raingarden benefits
Tags: , , , , , ,
Categories : Bioretention, Pervious Pavement, Sustainable Site Strategies

Opportunities

9 11 2009

Are words necessary?

curb and gutter

green street


Comments : Comments Off on Opportunities
Tags: , , ,
Categories : Green Street, Streetscape, Sustainable Site Strategies

Making Green Infrastructure Common Place

6 11 2009

Philly_Green_City1

Getting more for less is an approach almost everyone can appreciate. Why wouldn’t you want to get the most out of your investments? Appropriately applying green infrastructure in ways that effectively addresses critical stormwater issues while creating a more beautiful and economically vibrant community is common sense. Unfortunately, it isn’t common place. As the use of the available sustainable site tools and technologies continues to grow, it may not be long before green infrastructure is the conventional approach to stormwater management.

With the Release of their “Green Cities Clean Waters Plan”, Philadelphia joins a handful of cities across the Country that have committed to green infrastructure and seek to institutionalizing it throughout the city. Philadelphia’s plan published last September sets forth a bold plan to invest $1.6 billion. Of this total 62% ($1 billion) of it will allocated directly to green stormwater infrastructure. Another 18% ($290M) will directed to stream corridor restoration and preservation and 20%($320M) will address wet weather treatment plant upgrades.

Over the next few weeks we will take a closer look at Philadelphia’s plan. At over 3,000 pages, there is a lot of information to sift through. In addition, we will also look at Pennsylvania Environmental Council released a report titled “Implementing Green Infrastructure: Developing a Winning Strategy to Fund Philadelphia’s Ambitious Plan” that looks at the economic benefits of the plan and how other cities across the country are funding their stormwater initiatives. Together they are an impressive step forward for the City of Philadelphia and the Nation.

-Brian Phelps


Comments : Comments Off on Making Green Infrastructure Common Place
Tags: , , , ,
Categories : Plans and studies, Sustainable Site Strategies, Uncategorized
